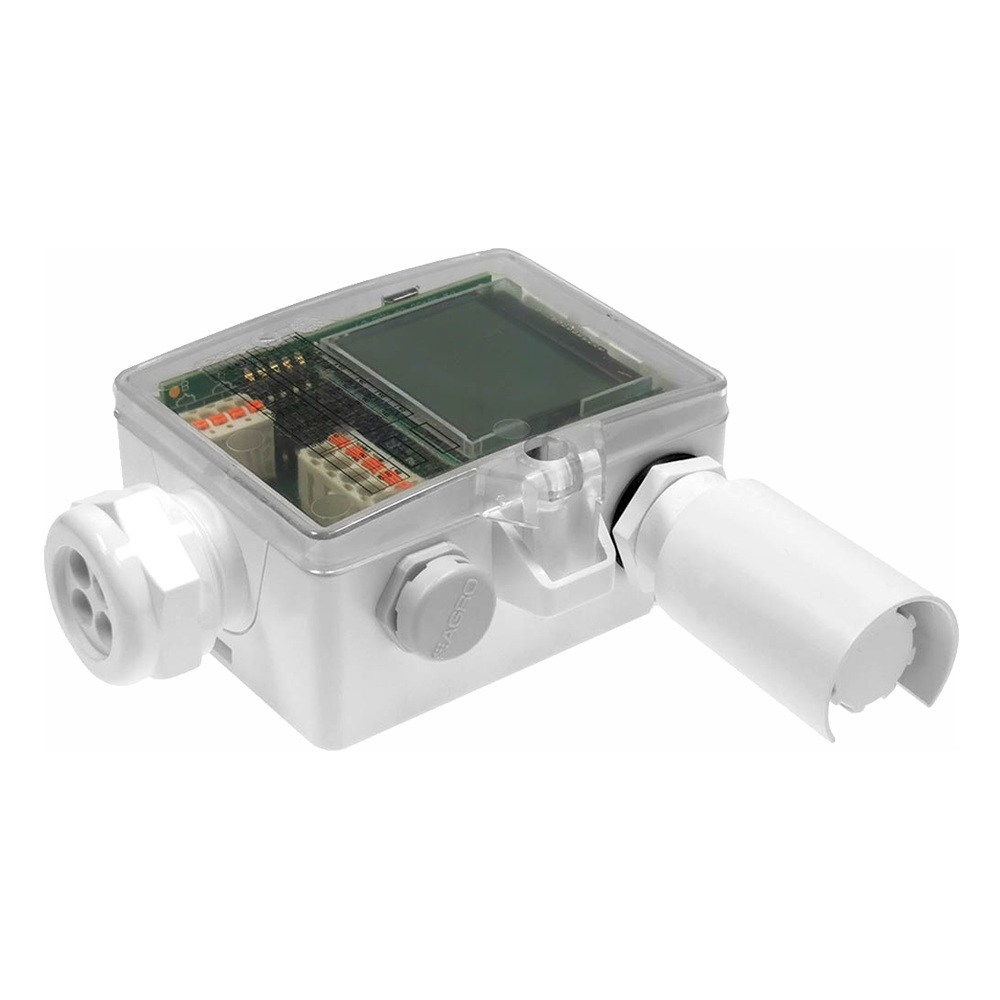

LA Plus AQ Air Quality Sensor

Name: LA Plus AQ Air Quality Sensor
SKU: 91641
Price: 69.00 USD
Availability: InStock

Air quality sensor for measuring CO2, mixed gas (VOC), optionally temperature and humidity outdoors and in areas requiring high IP protection class (e.g. underground stations, tunnels, exhibition halls, cold chains and greenhouses as well as in production halls and warehouses). For devices with CO2 and VOC, every output can be configured to be a mixed output (selectable ratio between CO2 and VOC). Devices with a relay option can be used as 2-point controllers or 2-stage controllers.

Category: Air Quality Tags: CO2, Humidity, Indoor Air Quality, Temperature

Description

APPLICATION
Sensor for outdoor CO2 measurement optional temperature and humidity: cold rooms, greenhouses, production plants and warehouses. With a
mix output, a mixture of CO2 and VOC signals can be realized. The mixing ratio can be configured with the USE app. Designed for outdoor mounted
applications with 0..10 V or 4..20 mA output. LCD models with RGB background light have a transparent cover. Display configuration and threshold
values for color changes can be parameterized via Thermokon USEapp. With the option board relay two-point controllers or a 2-stage 2-point
controller for temperature or humidity can be realized.

TYPES AVAILABLE
Outdoor sensor CO2 + VOC or Mix optional with LCD – active 2x 0..10 V | 2x 4..20 mA | Relay
LA+ CO2+VOC (LCD) VV
LA+ CO2+VOC (LCD) AA
LA+ CO2+VOC (LCD) VV Relay
Outdoor sensor CO2 + VOC + temp +rH (opt.) or mix optional mit LCD – active 3x/4x 0..10 V
LA+ CO2+VOC Temp 3xV
LA+ CO2+VOC Temp_rH 4xV

Contact us for more details
