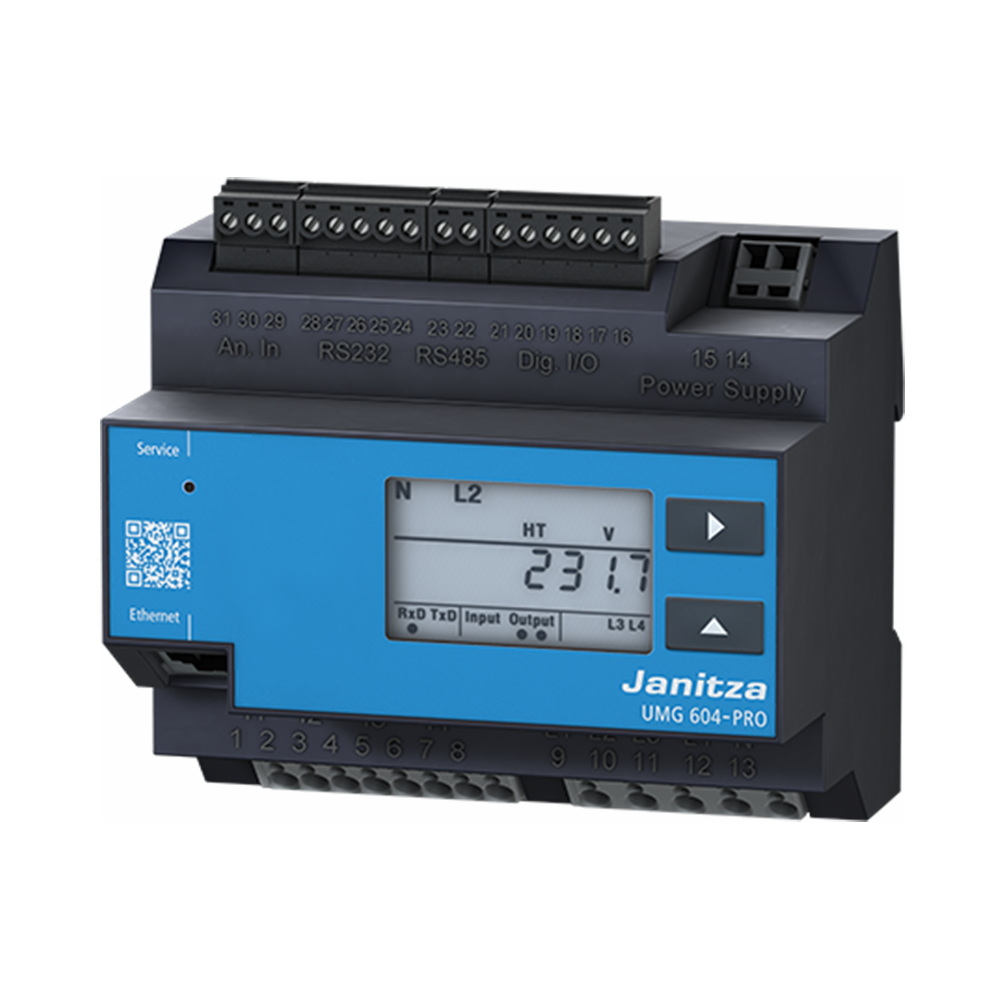

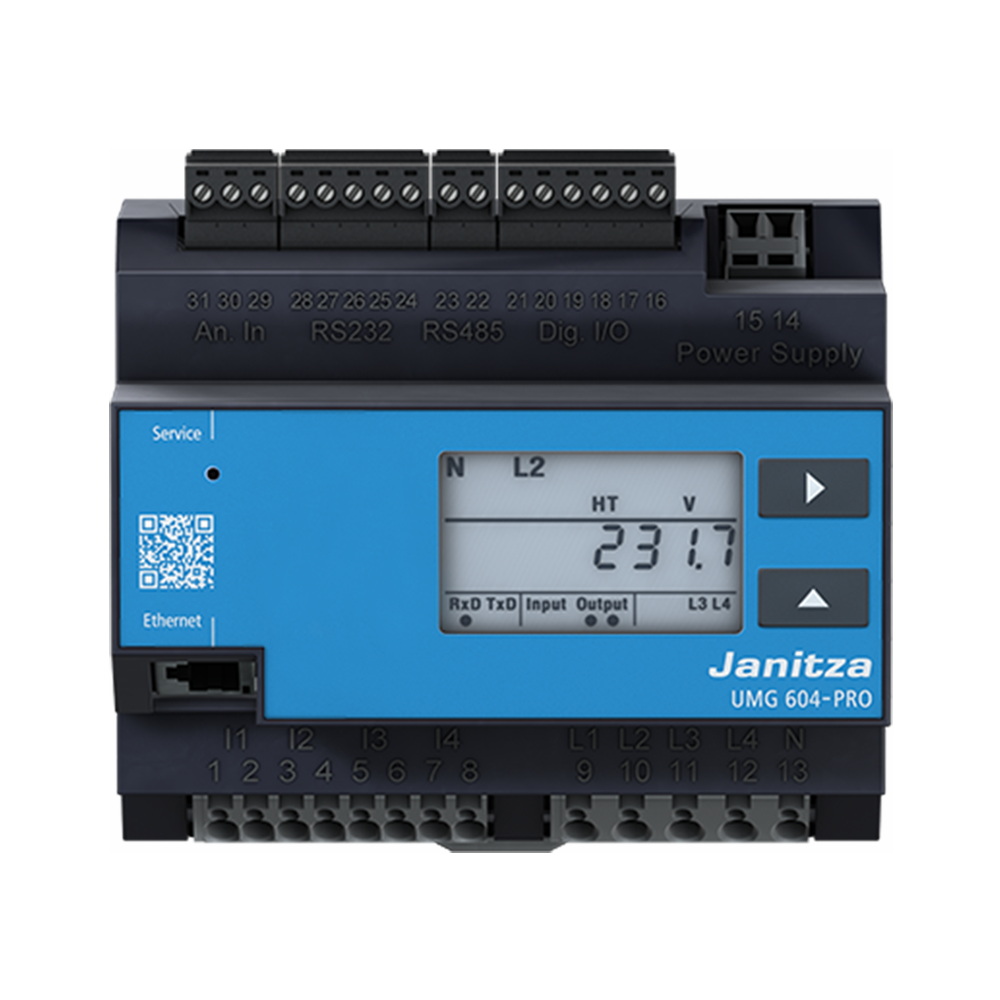

UMG604-PRO

MAIN FEATURES OF THE UMG 604-PRO

MEASURING DEVICES HOMEPAGE
The web server for the measuring device provides a wide range of data in a user-friendly format. The user does not have to install any software on their PC; a conventional web browser is all that is required. The user enters the measuring device IP address in the browser's URL bar and the measuring devices homepage is displayed on the screen. In addition to the modern homepage, APPs are available for an extended range of functions.

EVENTS
Events are short-term increases in voltage, dips in voltage, current swells or short-term interruptions (e.g. through bird strike or short circuits). UMG measuring devices can safely record and process events as of 20 ms and transients as of 50 μs. The causes of power quality variations can be identified and analysed in this way

JASIC®
The user can use the graphical programming language Jasic® to add their own functions to a UMG measuring device. Up to seven freely configurable user programs can run in parallel, e.g. monitoring processes or notifications when reaching defined threshold values. In addition to the graphical programming option, the user is also free to program the source code directly in JASIC.

ETHERNET-MODBUS-GATEWAY
The Ethernet Modbus gateway can be used to easily include the Modbus RTU devices that are connected to the master device as slaves in an Ethernet architecture. This is also possible via a Modbus RTU interface for devices with identical file formats and matching function codes.

POWER QUALITY

• Harmonics analysis up to 40th harmonic
• Unbalance
• Distortion factor THD-U /THD-I
• Measurement of positive, negative and zero sequence component
• Short-term interruptions (> 20 ms)
• Logging and storage of transients (> 50 μs)
• Start-up processes
• Fault recorder function
• Rotary field indication
