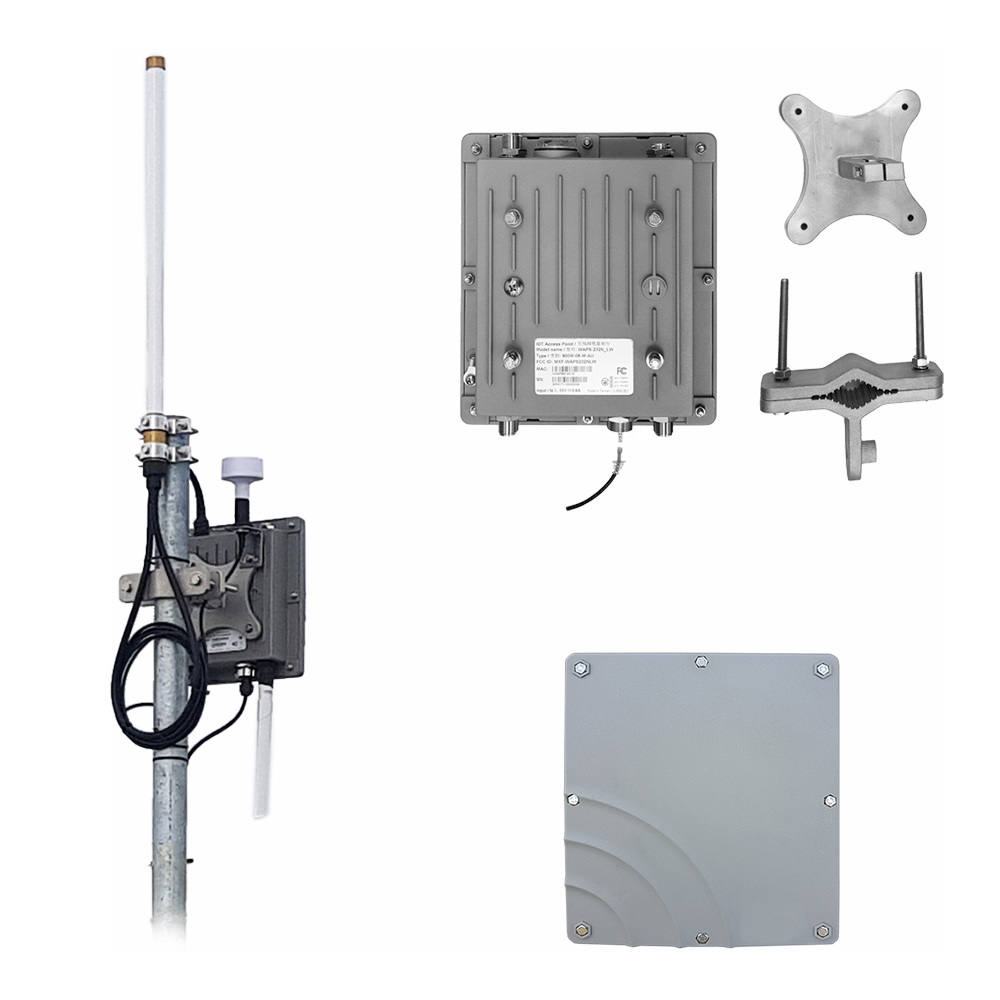

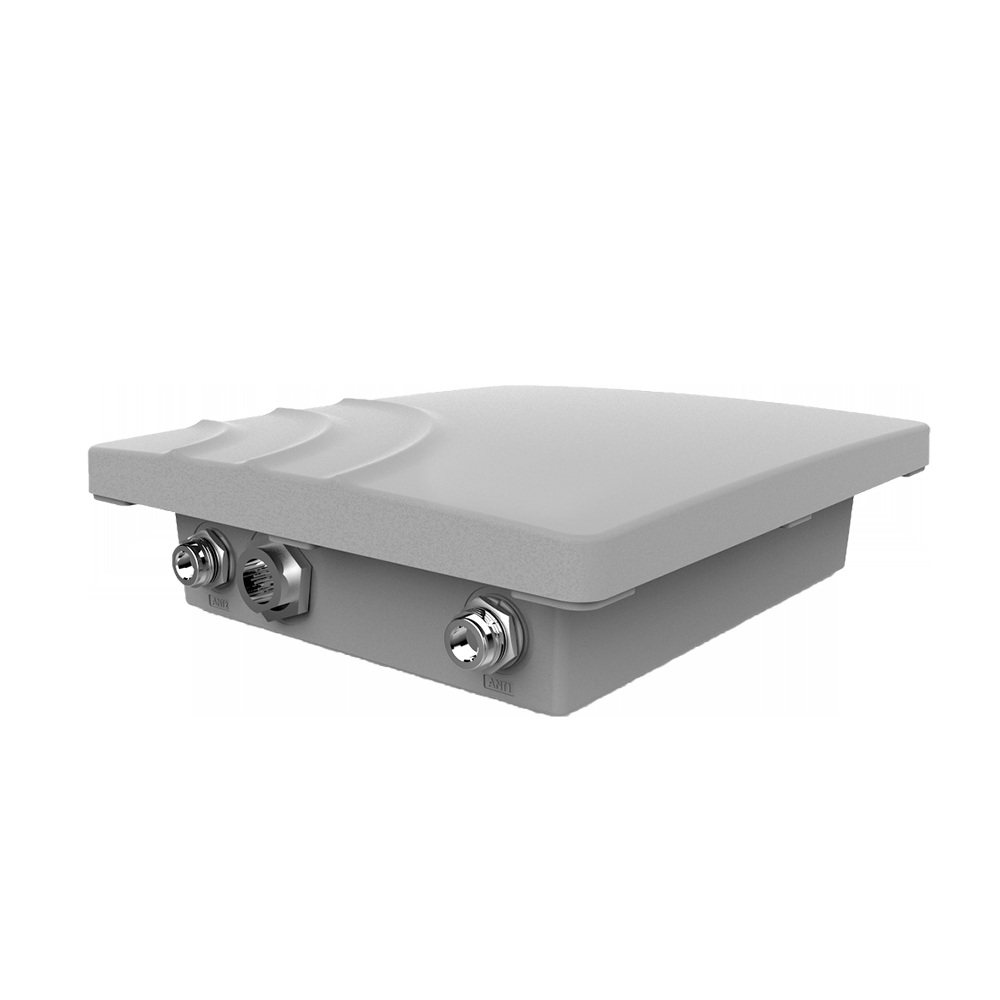

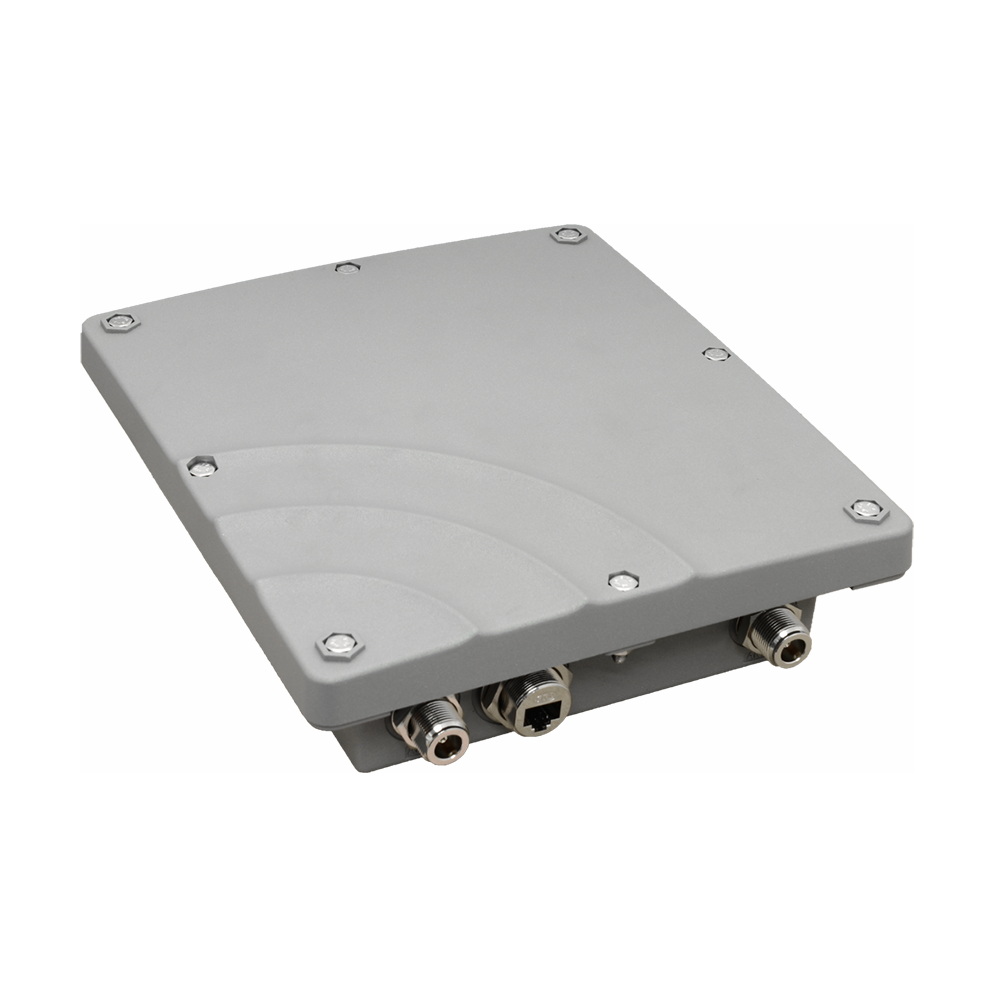

The 8 channels Outdoor Micro Gateway is designed for exchanging telemetry data with class A, B and C LoRaWAN terminals in industrial machine-to-machine communication networks. The integrated software provides a quick connection to Lora Network Server (LNS) for an easy deployment. There are a 10/100Mbit PoE Interface and a built-in 3G/4G modem to carry out the data exchange between the gateway and the network server. The gateway is equipped with a built-in GNSS module to provide A-GPS functionality of the network server. A fully metal IP 67 enclosure allows this device to be used in severe weather conditions.
FEATURES
- Compliance with LoRaWAN® 1.x
- Up to 8 channels for LoRa transmission
- Long range with an optional 4-10dBi antenna
- Frequency band from 863 MHz to 928 MHz
- Supports Listen-Before-Talk for downlink
- 3G/4G backhaul support
- 10/100 Мbit Ethernet PoE
- GNSS support
- TrackStation software for an easy deployment
- Full metal housing for heavy duty
- IP 67 waterproof
BENEFITS
Easy to use and easy to install. Very reliable device for multiple applications.
