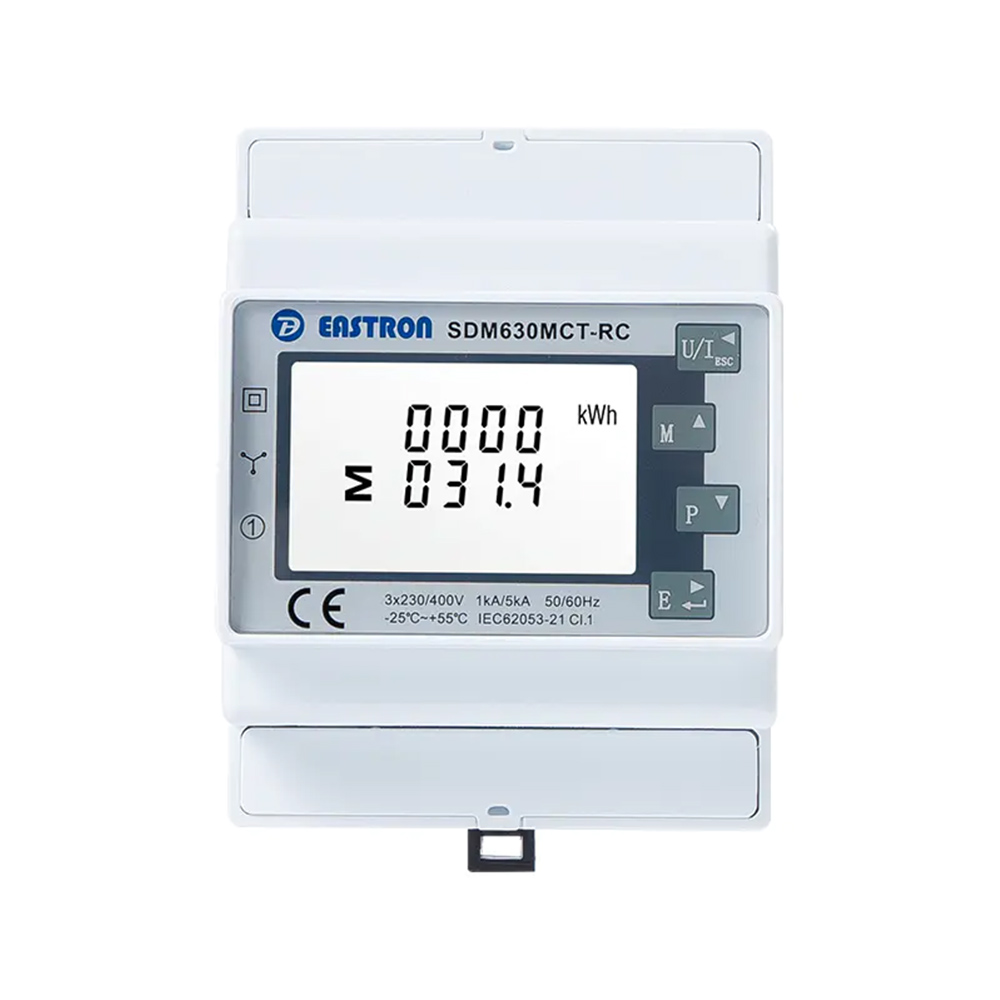

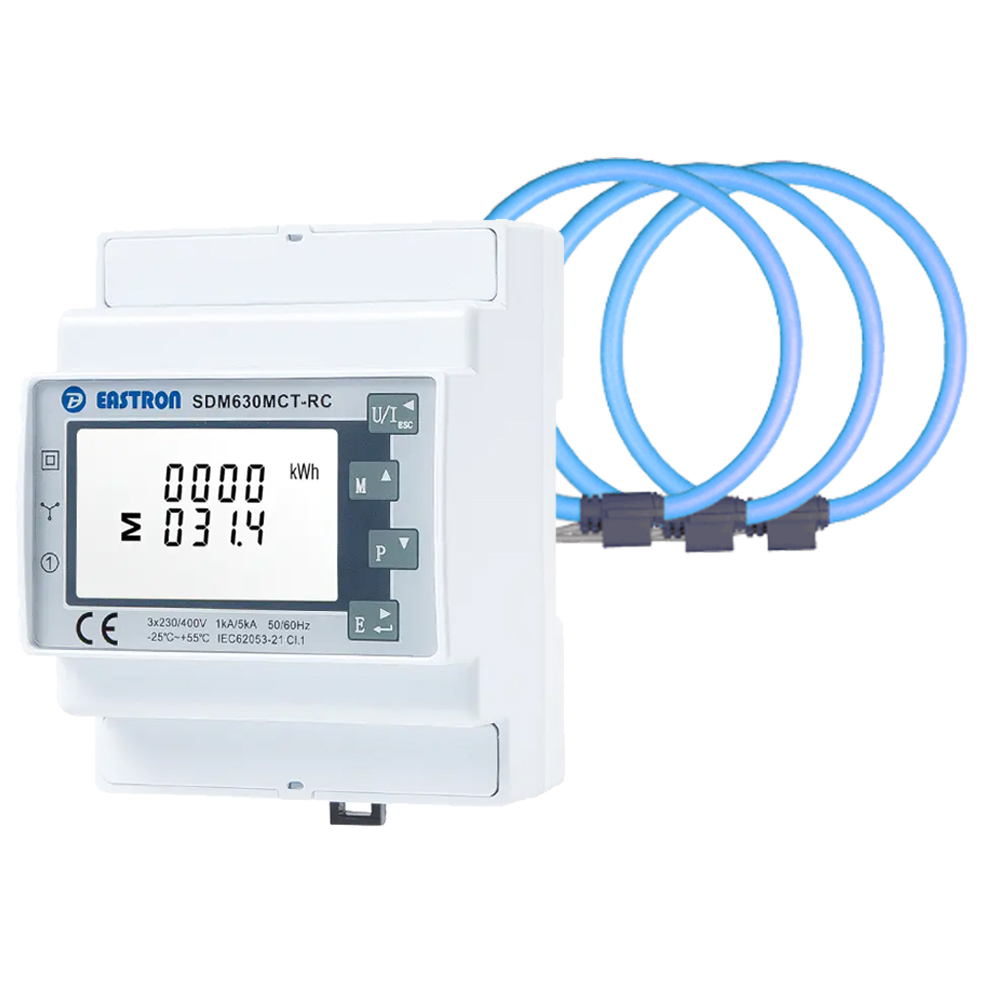

The SDM630MCT-RC is Rogowski Coil Connect RS485 Modbus Din Rail Three Phase Multi-function Energy Meter. Suitable for monitoring energy consumption and many other electrical parameters.The unit requires auxiliary power supply (AC or DC) to power the meter and it can work with 1A/5A input CTs. Built-in interface provides RS485 port for Modbus RTU communication.The meter directly connects with Rogowski coils for current measurement without integrator.
Displayed Parameters
- Phase to Neutral Voltage (V)
- Phase Current (A)
- Voltage Total Harmonic Distortion (U%THD)
- Current Total Harmonic Distortion (I%THD)
- Frequency (Hz)
- Power Factor (PF)
- Current Max Demand (MD A)
- Power Max Demand (MD kW)
- Active Power (kW)
- Reactive Power (kVAr)
- Apparent Power (kVA)
- Import Active Energy (kWh)
- Export Active Energy (kWh)
- Total Active Energy (kWh)
- Import Reactive Energy (kVArh)
- Export Reactive Energy (kVArh)
- Total Reactive Energy (kVArh)

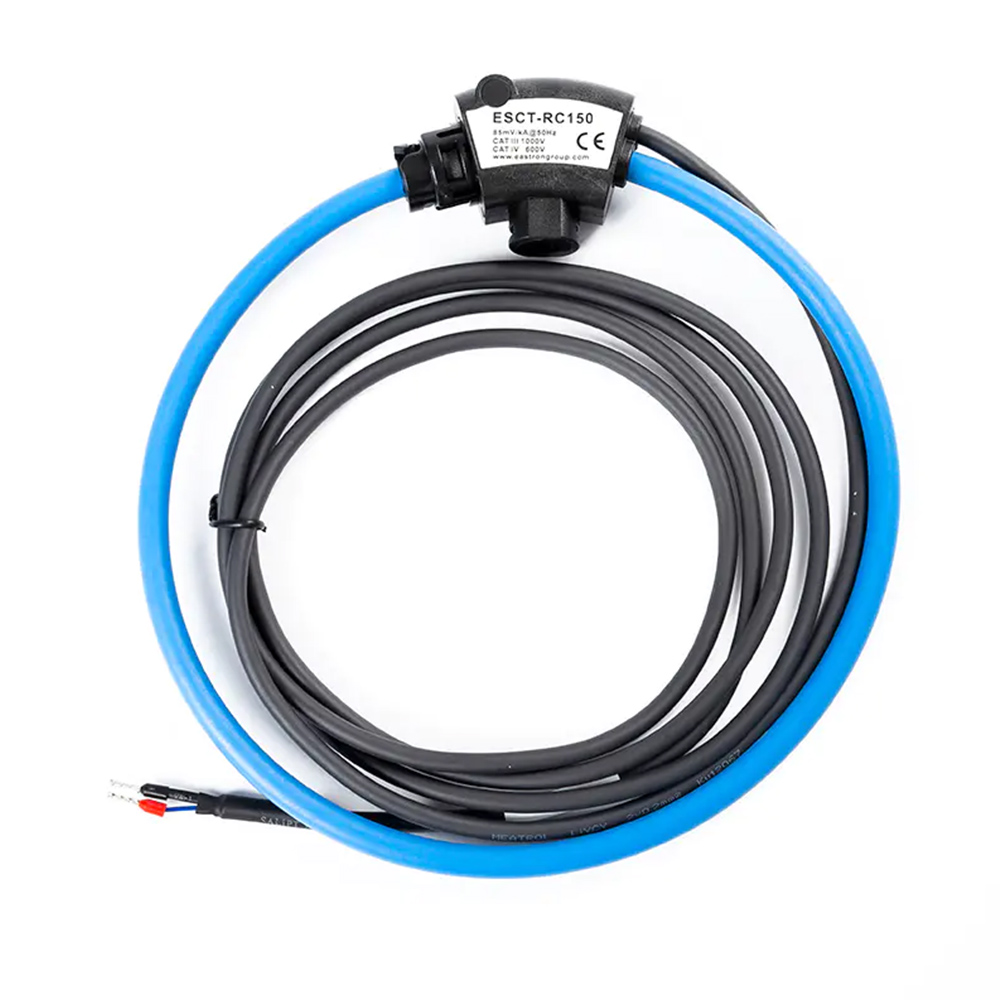

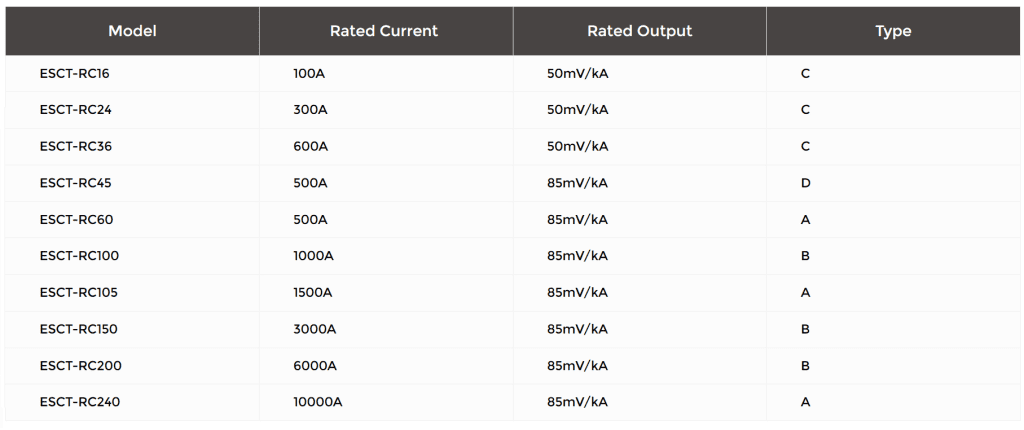

ESCT-RC Series are flexible current transducers based on Rogowski principle, particularly suitable for measurement in combination with portable devices. ESCT-RC coils are available in different sizes and can be supplied according to customer's design, therefore they can be used in all those applications in which traditional transducers (Current Sensors) are not fitting due to its size and/or weight. ESCT-RC Series provide with a shield against the influence of external magnetic fields, therefore it grants a stable measurement from low currents to hundreds of kA.
